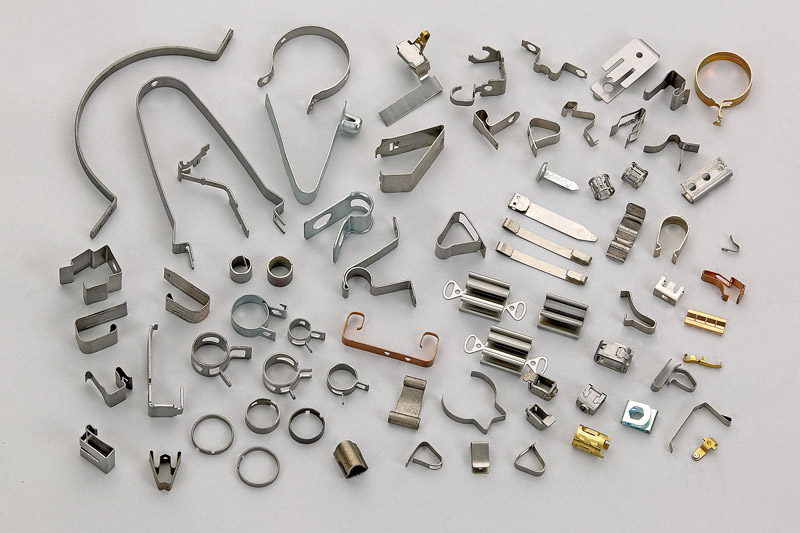

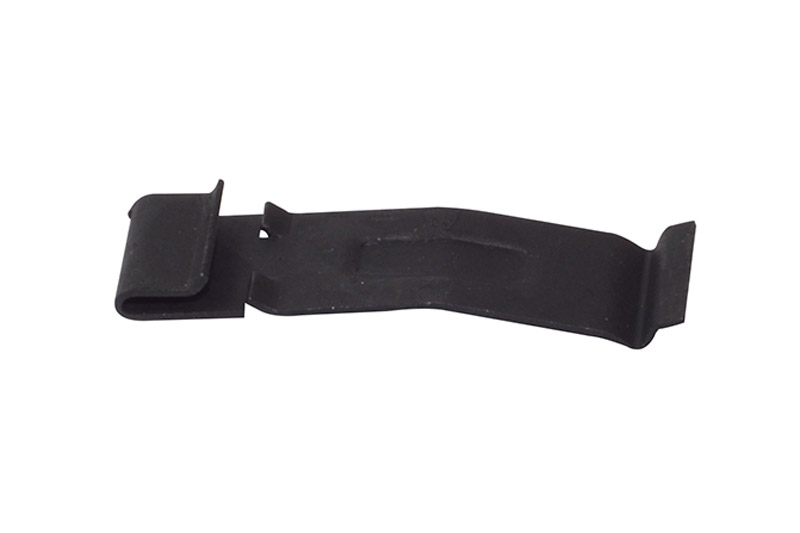

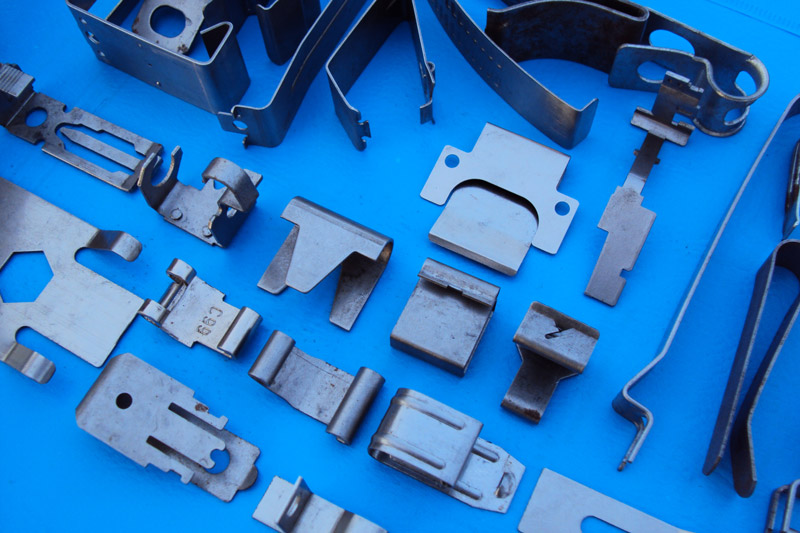

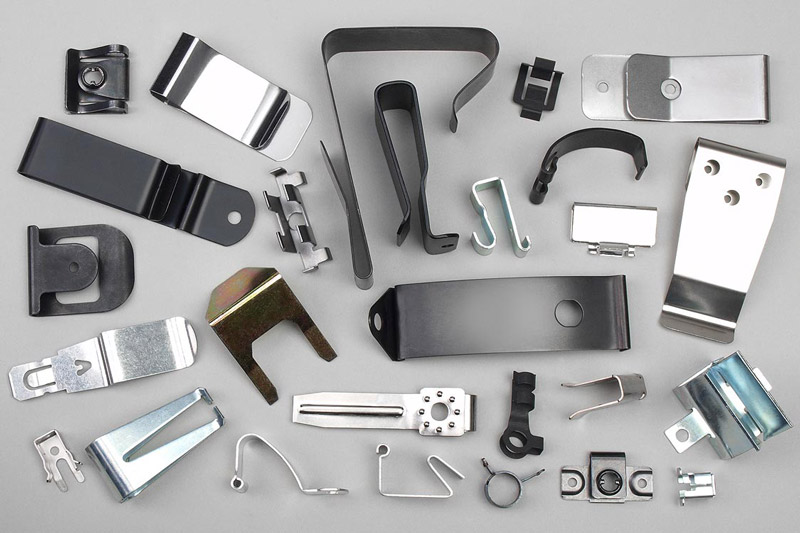

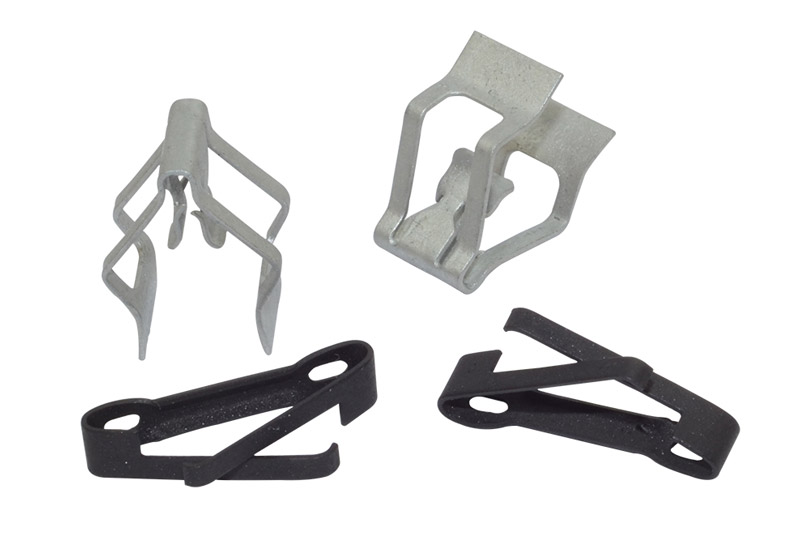

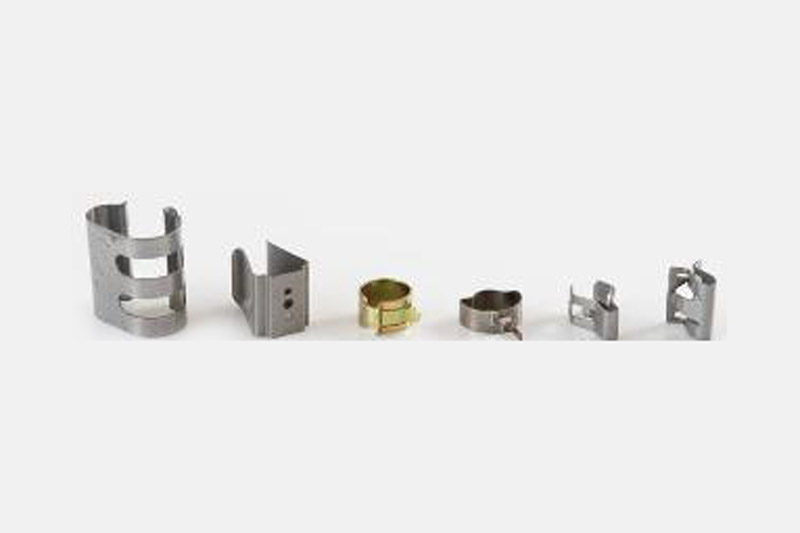

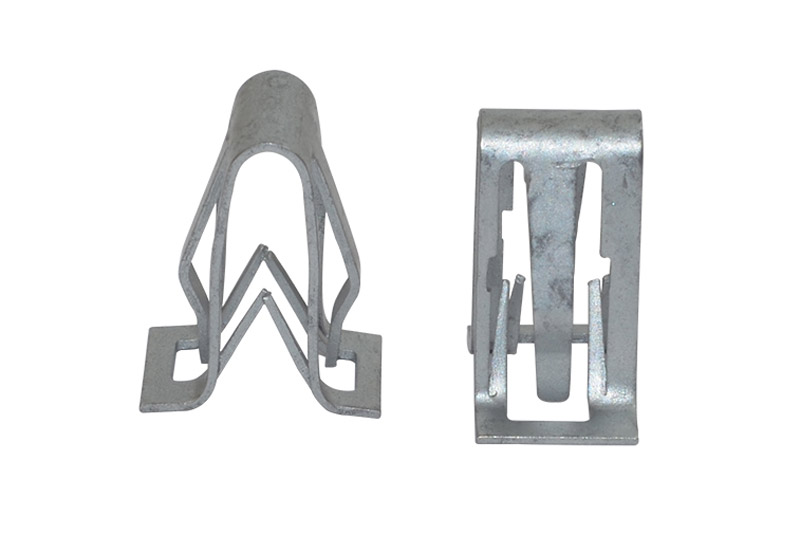

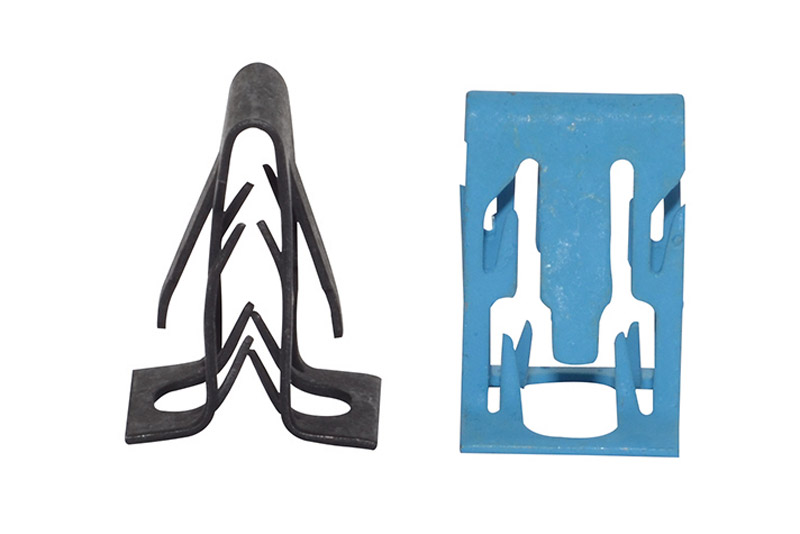

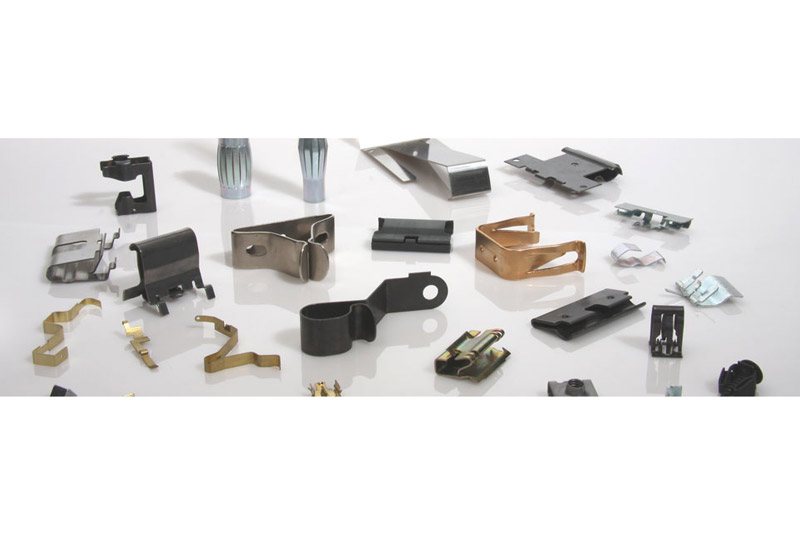

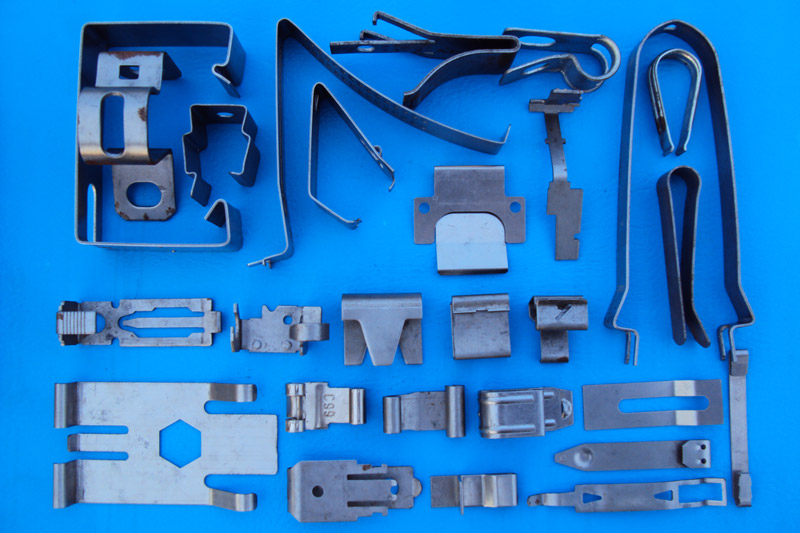

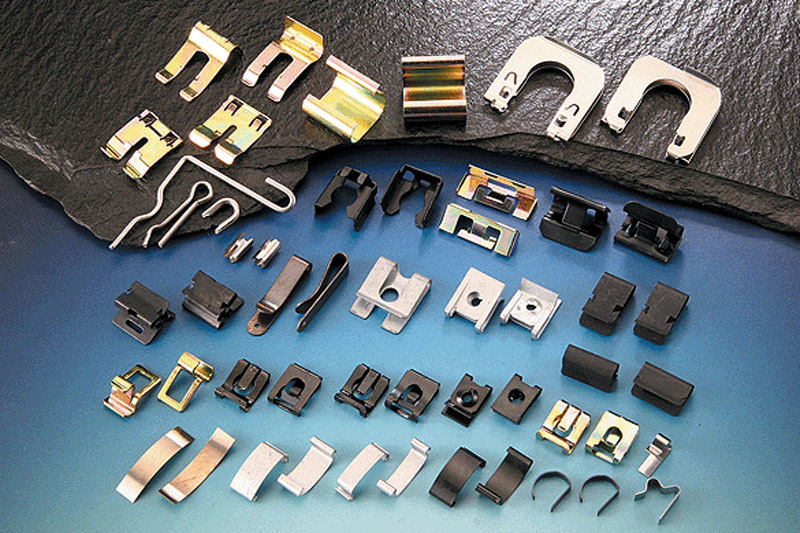

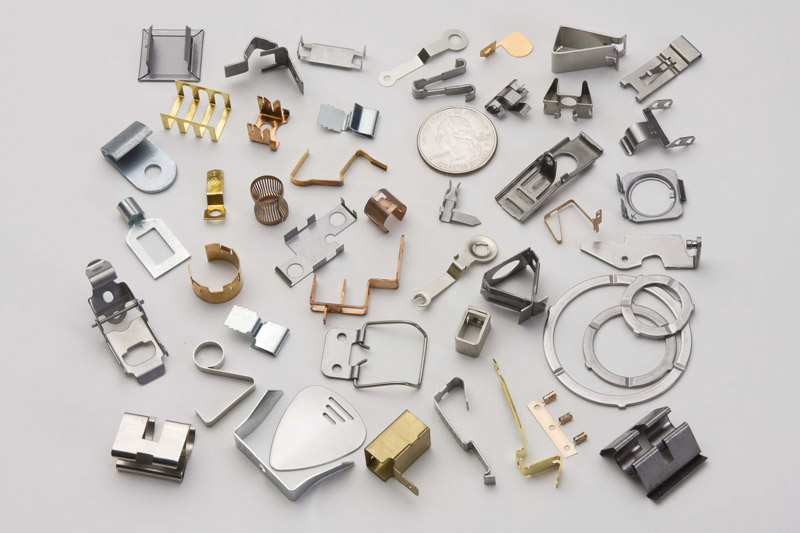

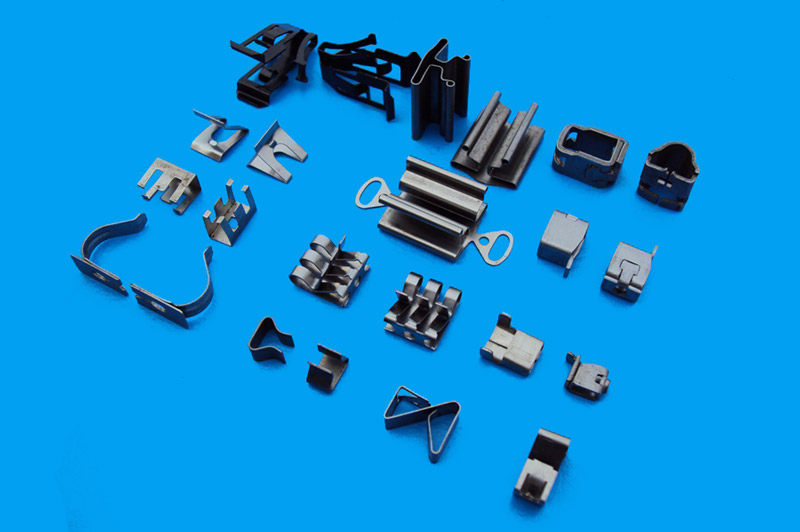

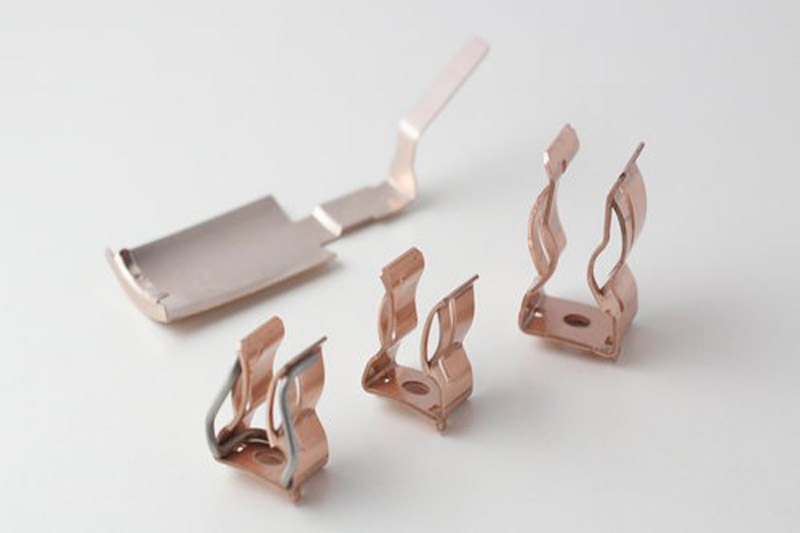

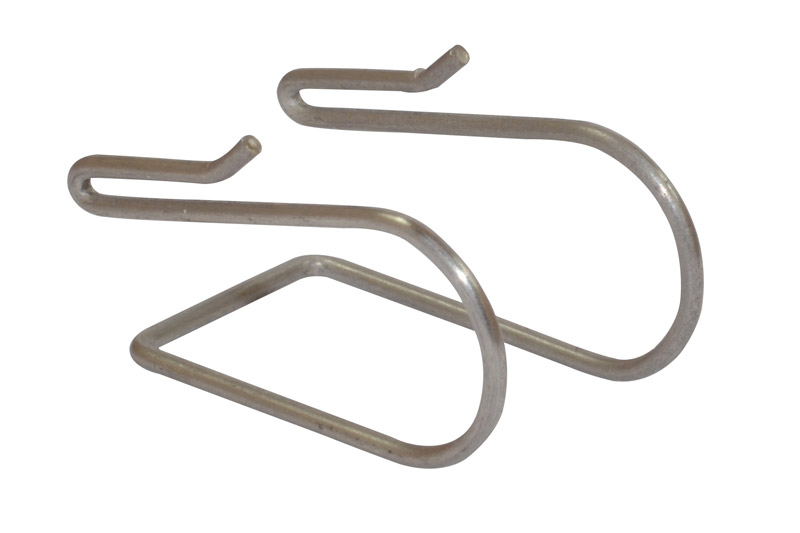

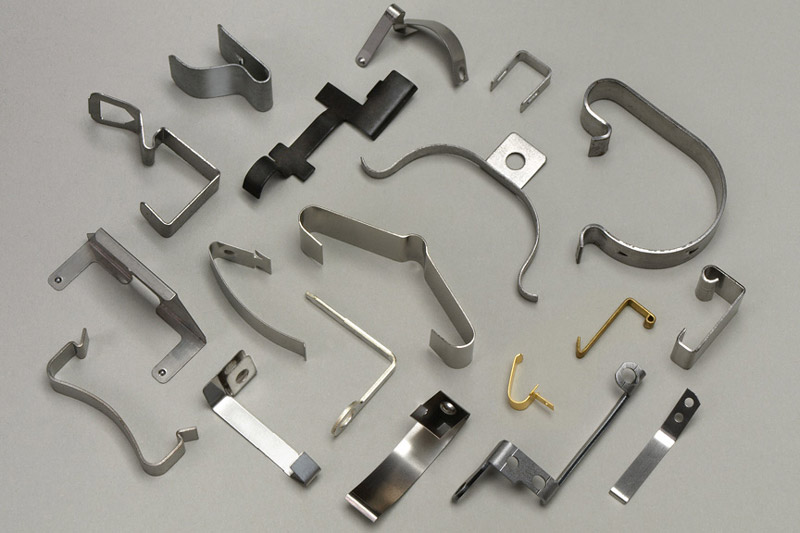

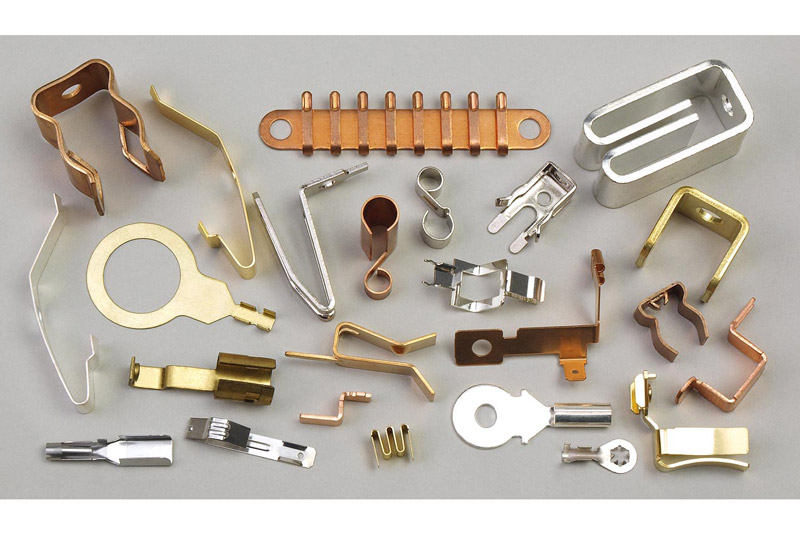

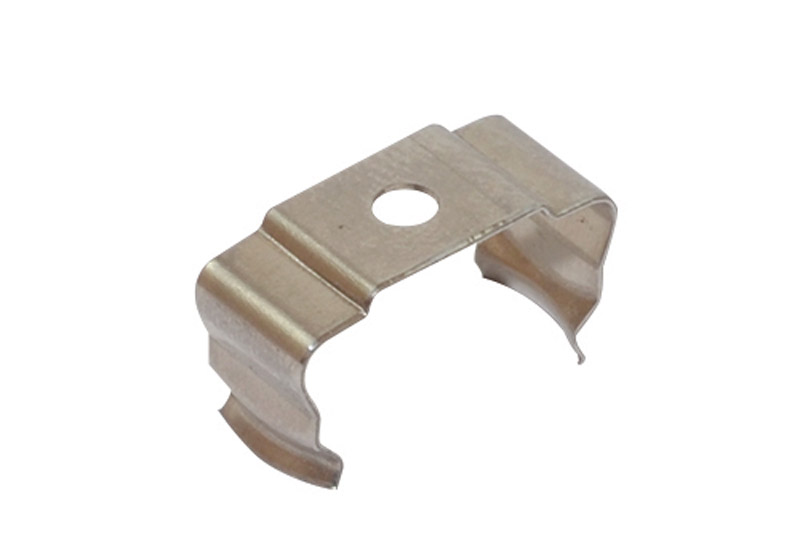

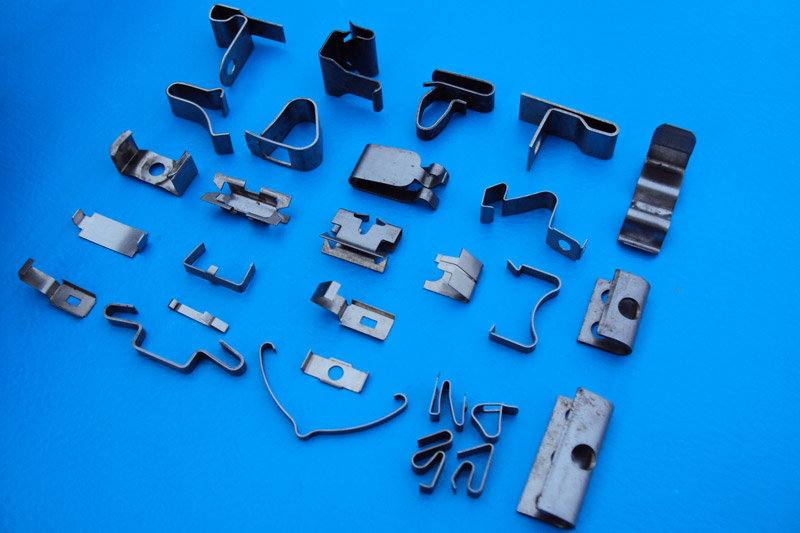

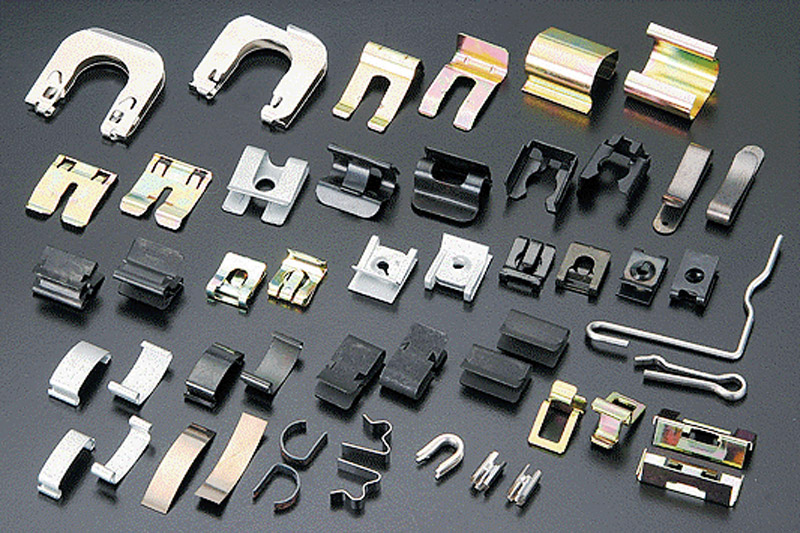

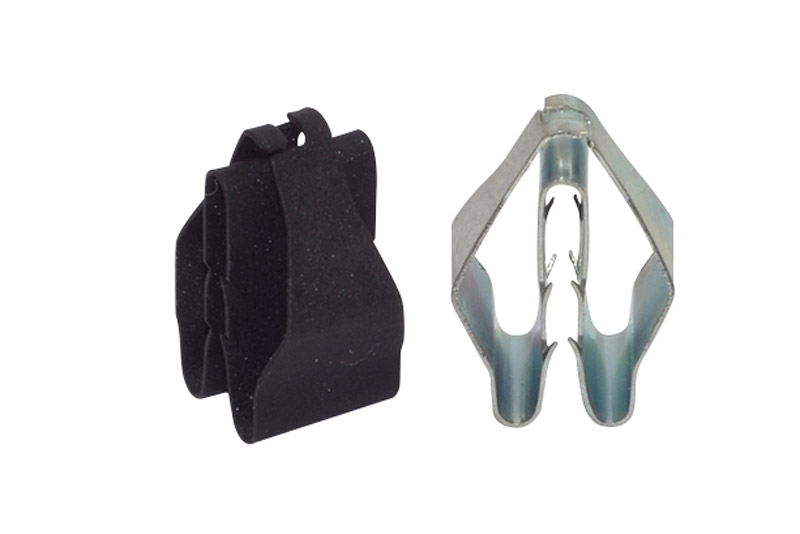

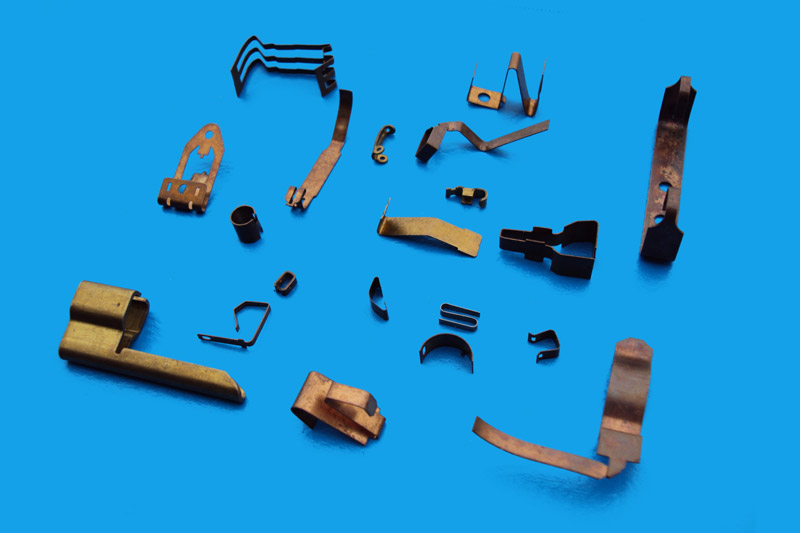

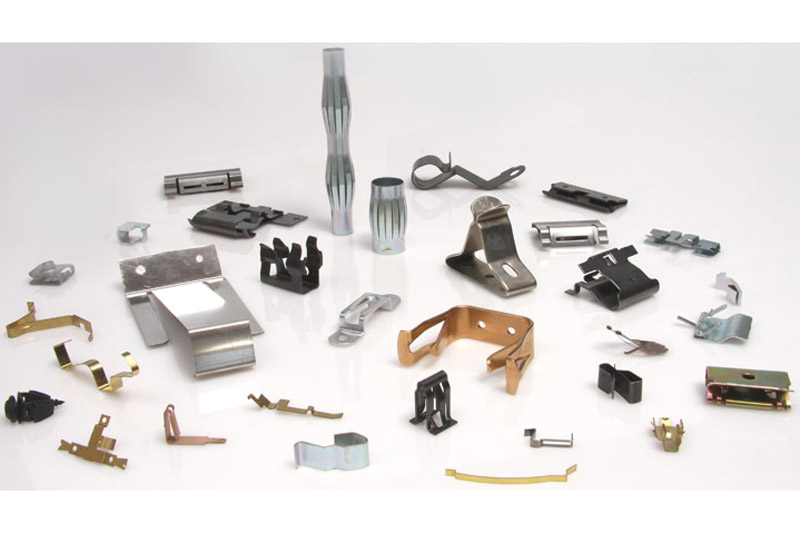

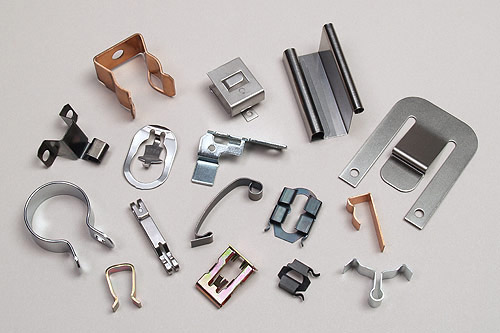

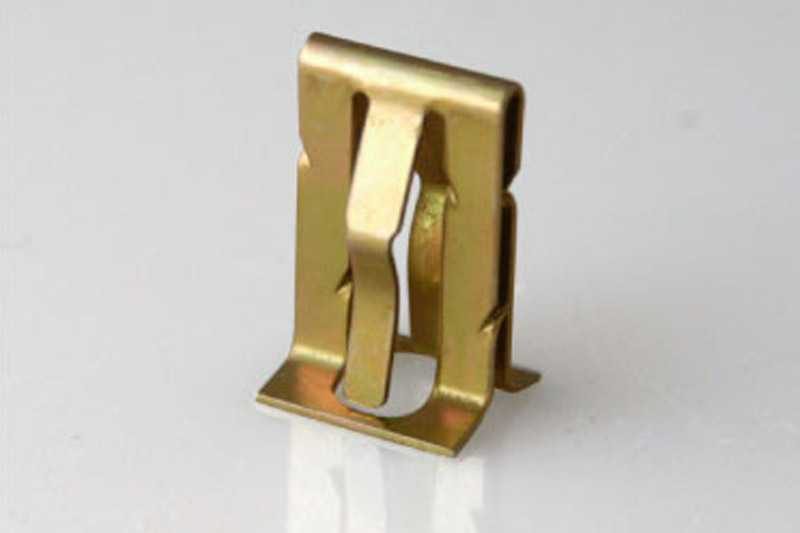

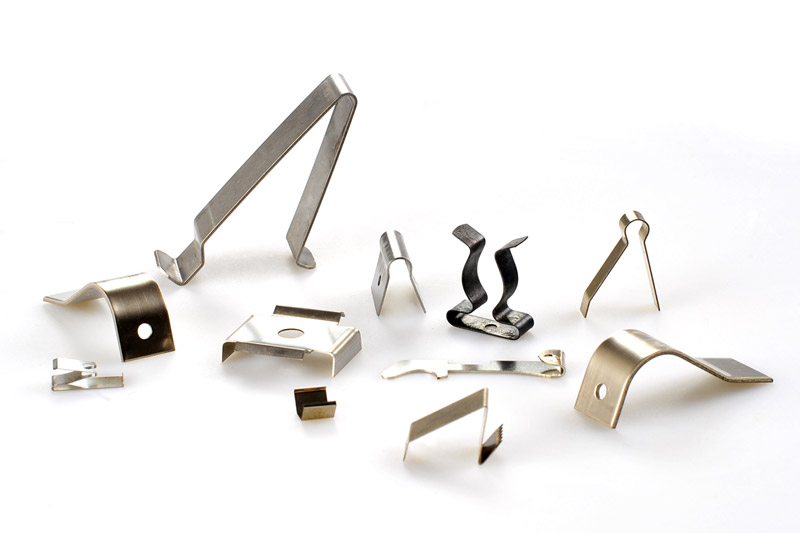

Baysal Yay , a well-established leader in the bending of wire and strip material, continuously invests in mechanical and computerized multi slide forming technologies enabling all of our divisions to produce complicated clips, clamps, and hose clamps in both wire and flat forms through a single operation.

Multi slide machine is a versatile machine that has the ability to run both flat coil stock to make stampings as well as wire of any type to make wire forms. The multi slide fabrication process is not very well-known to a number of people in the manufacturing industry because of its specialized nature. It has the ability to make parts with complex shapes and bends that cannot be created using a progressive die.

A typical multi slide machine has two main components: the die section and the slide section. The slide section is the area in which each slide is activated by separate cams that move or “slide” the tool into the coil strip or wire. Each slide will approach the strip or wire from ten different positions, hence the name “multi slide”. Prior to the strip advancing to the slide section, it first moves through die section. Similar to a progressive die tool, the die will perform the “gutting” (removal of extra material that is not needed to facilitate the part fabrication) and form some bends if needed. Not all multi slide have a die section as it is not always needed, especially in the fabrication of wire forms that can be made with precision tolerances and at higher run rates. The fabrication of a wire form follows the same principles as a stamping, except for the fact that a die station may not always be necessary.

Baysal Yay ability to run both multi slide and progressive dies gives us the ability to determine which process will run faster, utilize the material more efficiently, and provide a high quality part at a reasonable cost.

Tool Capabilities:

• Progressive dies, multi-slide tools, blanking dies and secondary forming tools
• Design / Engineering Support and Prototyping
• In-House Tool designers
• Engineering support and part design assistance
• Experienced toolmakers and designers
• Tooling fabrication capability to get your tools done fast

At no extra cost to the customer we can provide:
• Technical specifications at your request (i.e. tolerances for critical dimensions, proper size and type of material, etc.)
• SPC data on production runs.
• Design support and problem solving to ensure functionality of product at the most effective cost.
